All You Need to Know About PEX Pipe

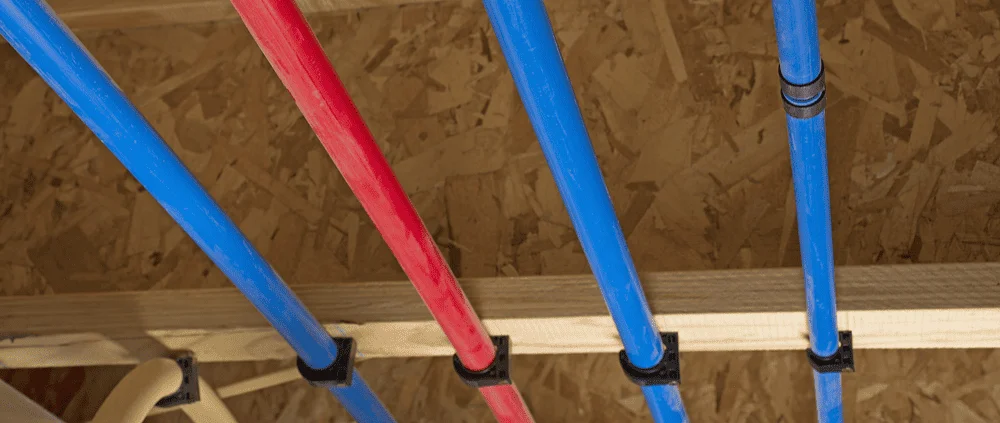

Pex Pipe

As you know that PEX  is rapidly being chosen in new development and restoration projects to substitute metal and strong aluminum water supply pipes. While coils of blue and red PEX pipe are frequently seen in plumbing sections of home improvement shops. Many people are unaware that this colored tubing enables them to fix broken water lines. you have to read continuously to learn everything about PEX, covering its many uses, locations, and methods of application. it can also help you to study the material’s strengths and disadvantages.

PEX Types

All types of PEX pipes do not have the same properties. It is presently produced utilizing three different methods. This technique produces pipes with various degrees of cross-linking that are suitable for drinking water applications. Some sorts of pipes that you should be aware of are listed below.

Engel Type

This method attaches molecules while extruding amorphous polyethylene. This is a method of “hot” connection. With roughly 85 percent cross-linking, this method provides the highest cross-linking of all PEX types. This amount of cross-connection offers elasticity and heat and elastic memory by delivering warmth to the tube’s kinks.

Silane Type

Following the extrusion process, PEX-b tubing is linked to a hot plate or steaming sauna. The connection rate is usually between sixty-five and seventy percent. The technique isn’t as consistent as PEX-a, and it lacks the thermal memory that enables kinked tubes to be reformed using a heat gun.

E-beam Type

PEX-c then uses a beam of electrons to change or connect the chemical structure of the tube. To achieve seventy to eighty percent cross-linking, PEX-c requires multiple crossings below the beam. Oxidizing discoloration (from natural white to yellow, without adding color) and increased rigidity are side effects of the treatment.

Expanding Property

PEX extends and relaxes much more than copper, thus there is no need to overstretch it. Allow a little gap between the fasteners for it to fall. As shown, including a loop to allow for a contraction over long runs is a wise decision. Another advantage of looping is that if you make mistakes and need extra tubing, you may remove it from the loop. Additionally, because PEX extends and shrinks, drill bigger holes into studs or joists to enable the pipe to move freely. Additionally, avoid using metal straps to secure it. Rather than that, use plastic straps.


PEX pipelines are almost impervious to corrosion having an exception for copper or steel pipes. Corrosion has the potential to create leaks and damage to the drinking water supply, which is especially hazardous. There are so many different types and sizes of PEX pipes available that it may be difficult to choose the right one for your specific application.

Flexible property

The PEX pipe may be kept on the spool and does not have to be cut or soldered before installation since it is pre-cut. The flexibility of PEX pipes makes it simpler to transport, handle, store, and install than other types of pipe s.For more information, feel free to contact jam plumbers
